xFor quotation only. Go2Filter supplies configurable metal support cages for selected dust collector filter bags and baghouse systems. The cage supports the filter bag during filtration and cleaning. Final fit, material and construction are reviewed against the existing collector, filter bag, tubesheet connection and operating conditions.
Configurable Dust Collector Filter Bag Support Cages

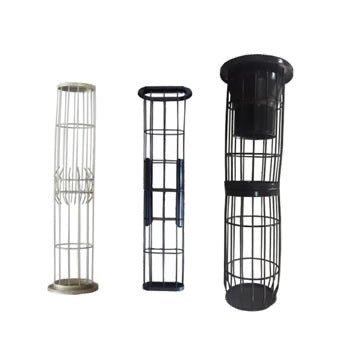

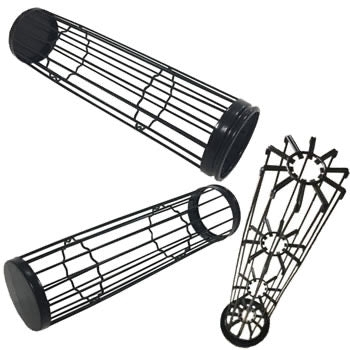

Available cage families may include round, oval or flat, star-shaped and application-specific configurations. One-piece or multi-section/jointed construction, different header and bottom styles, and cages with or without a venturi may be reviewed for the confirmed dust collector design. These are selectable capabilities, not a universal specification for every application.
Material and Surface-Treatment Options

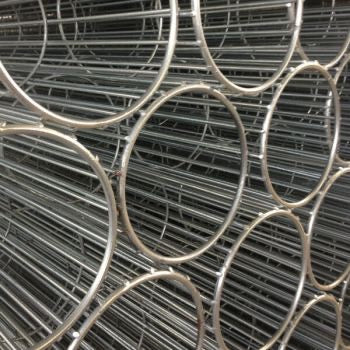

Material options may include carbon steel, galvanized steel and stainless-steel grades. Available surface-treatment families may include galvanizing, epoxy or plastic coating, and silicone coating. Final grade and treatment are selected after reviewing temperature, moisture, process gas, corrosion concerns, handling and installation conditions.
Dimensions and Fit to Confirm
- Cage outside diameter, overall length and any section length
- Vertical-wire count and diameter, plus ring number or spacing
- Top/header, collar or flange arrangement and bottom construction
- Venturi requirement and dimensions, if used
- Matching filter bag dimensions and top/bottom construction

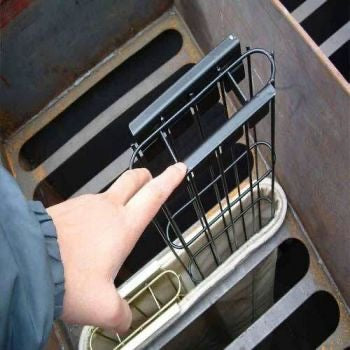

- Tubesheet opening, seating and collector cleaning method
Support Cage RFQ Specification Checklist
| Information to provide | What to confirm |
|---|---|
| Cage profile | Round, oval, flat, star-shaped or the existing application-specific shape |
| Dimensions | Outside diameter, overall length and any section length |
| Wire and ring layout | Vertical-wire count and diameter, plus ring count or spacing |
| Top and bottom construction | Header, collar or flange arrangement and bottom style |
| Section and joint design | One-piece or multi-section construction and the existing joint method |
| Venturi | Whether a venturi is used and its dimensions |
| Material and finish | Required metal grade and surface treatment, if known |
| Equipment fit | Filter-bag dimensions, tubesheet opening, seating and cleaning method |
| Operating conditions | Temperature, moisture, process gas, corrosion concerns and handling conditions |
| Order information | Drawing, photographs or sample details, plus quantity |
Drawing, Sample and Order Review
Customized cages can be reviewed from the existing cage, filter bag, tubesheet, drawing, clear photographs, sample or complete equipment measurements. Inspection points such as dimensions, straightness, roundness, ring spacing, weld condition and surface condition can be agreed for the order. Final price, MOQ, packaging, weight, shipping and lead time are confirmed in the quotation after the configuration and quantity are reviewed.
Some dust-collection projects involve both the support structure and the filter bag. See pleated dust filter bags for industrial dust collection when reviewing a pleated bag requirement, and provide bag dimensions, top and bottom construction, equipment type and cleaning method. The final bag and cage configuration must be reviewed separately for the actual equipment.
Request a quote for dust collector filter bag support cages and include the available drawing, dimensions, photographs, sample details, operating conditions and quantity.
